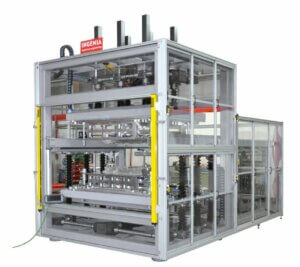

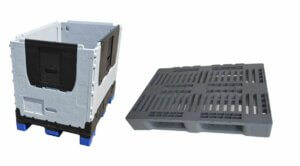

Surface welding machine for pallets or panels

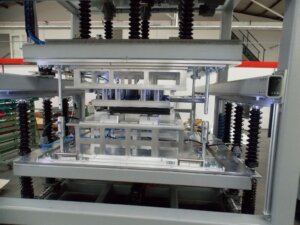

The Y-P-SF series of surface welding machines are robust all-round machines that have been developed for welding large-surface components in a horizontal arrangement.

The welding cycle runs fully automatically and the most important welding parameters are determined by a master computer.

The minimum working width is 0.6 x 0.6 m (model 06.06 SP), while the maximum width is 2 x 2 m (model 20.20 SP).

These machines are suitable for processing all common thermoplastic materials.

Additional equipment Y-P-SF

• Additional clamping areas for clamping multiple workpieces
• Machine enclosure with extraction nozzle (without blower), for the removal of welding gases
• Safety door for manual machine loading and emptying
• Width adjustment range transport unit for automatic loading and unloading
• Extension of the products, incl. Feeding & end loading conveyor
• Special energy supply on request
• Force measuring system with force control and offset compensation, FESTO
• Complete solution incl. Printer
• Special paintwork
• Online diagnostic system

The following models are available:
